Yamaha FSH 210 Transducer Mounting Location

[Giggajr]

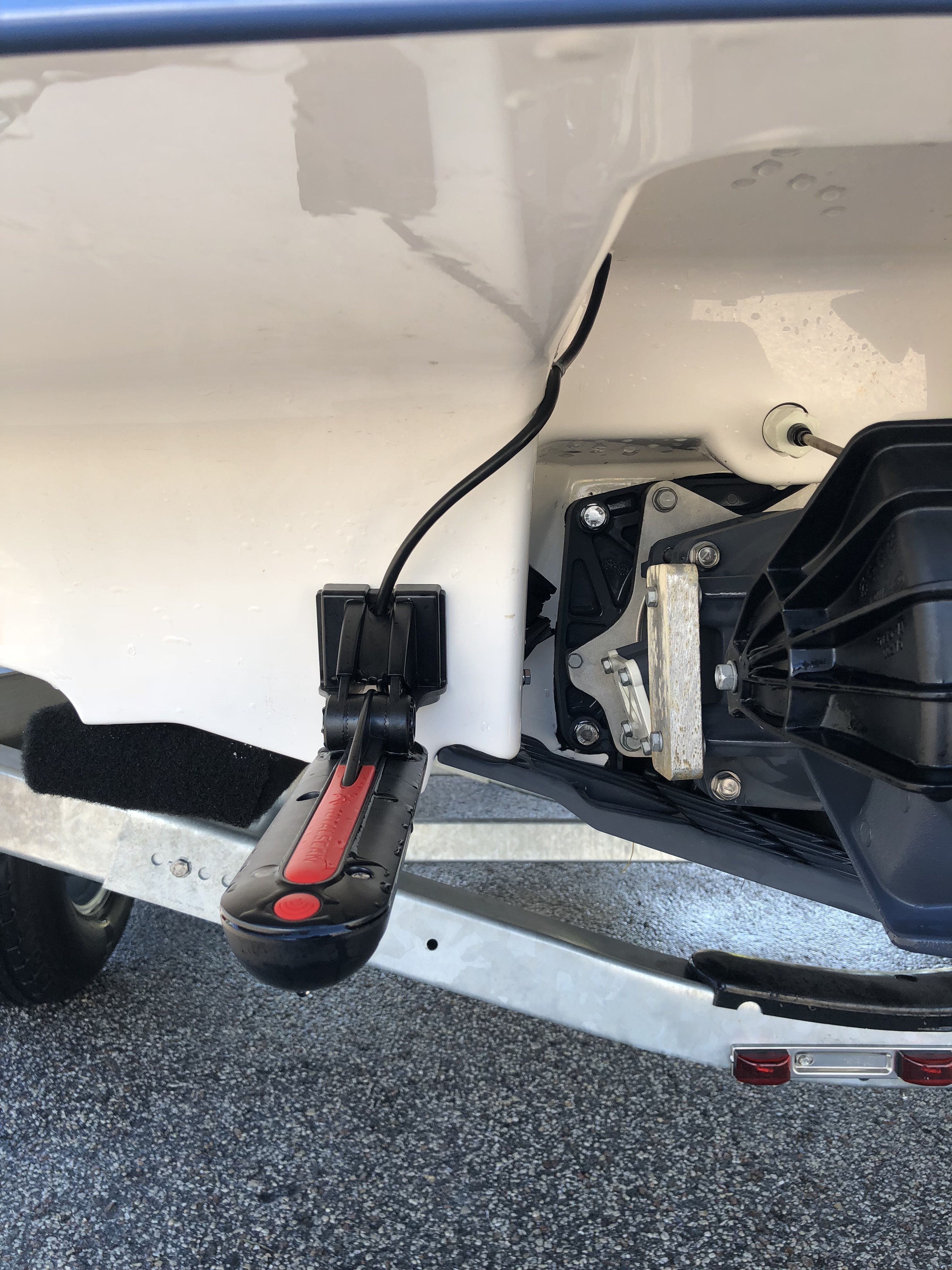

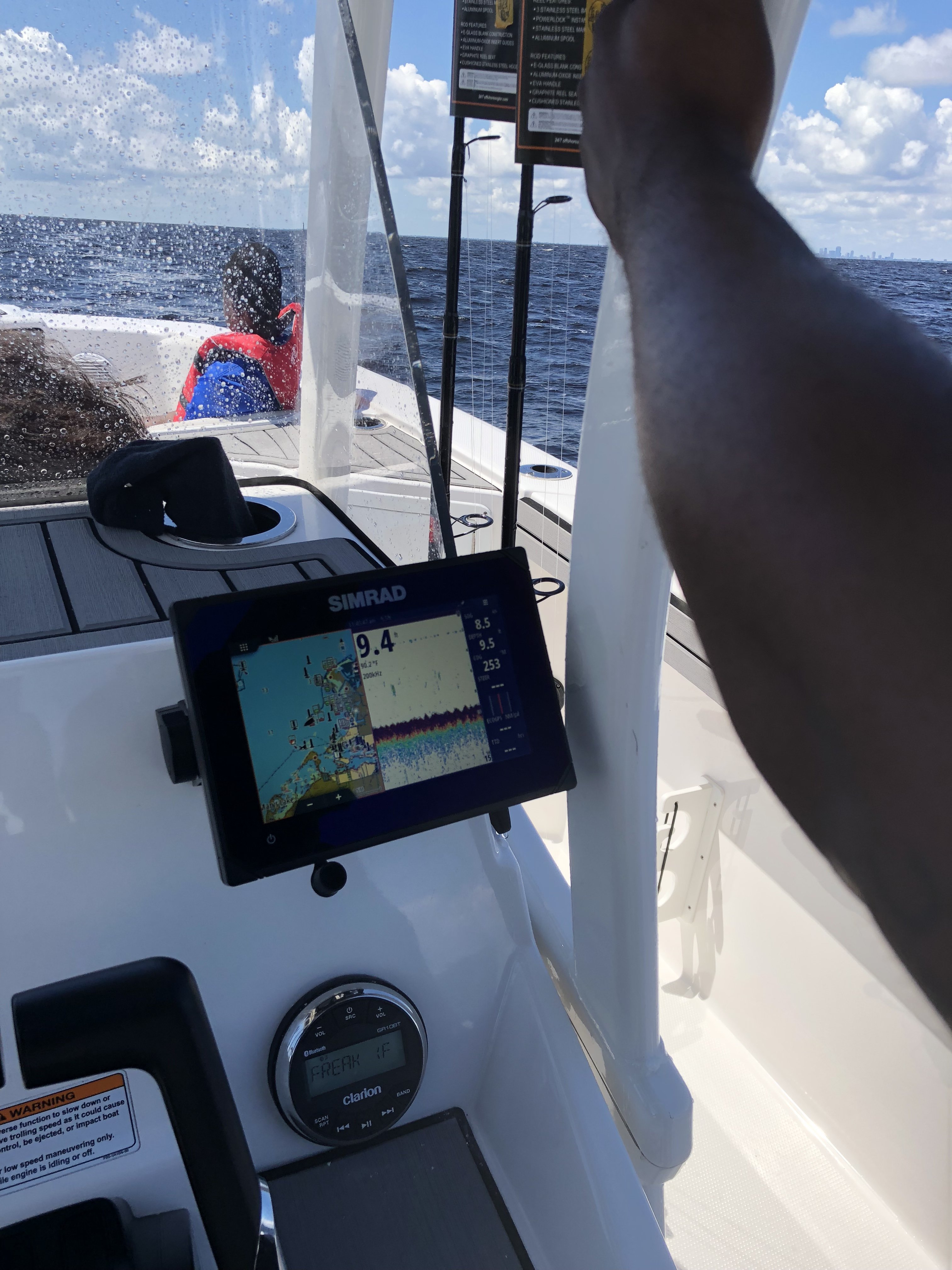

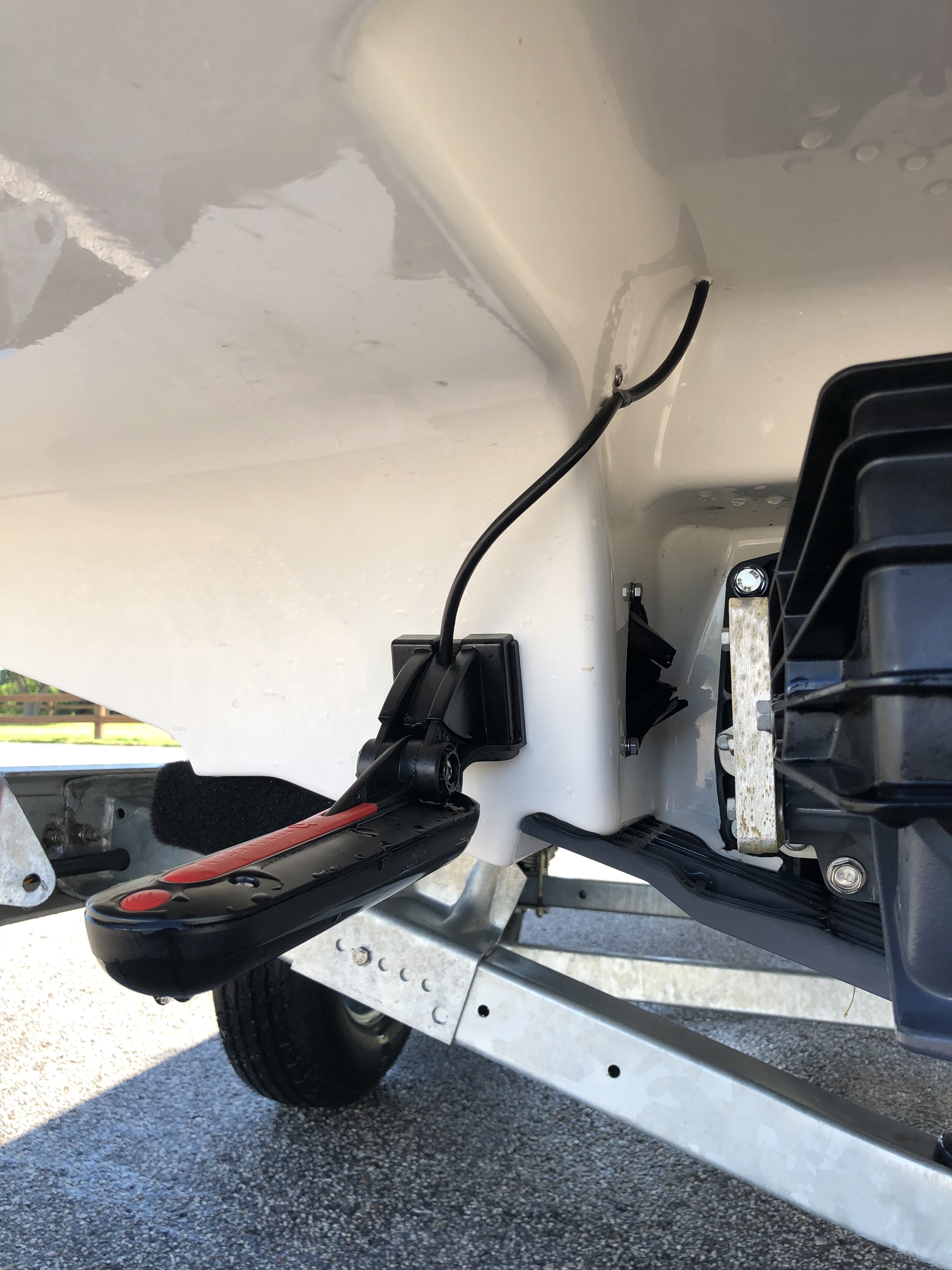

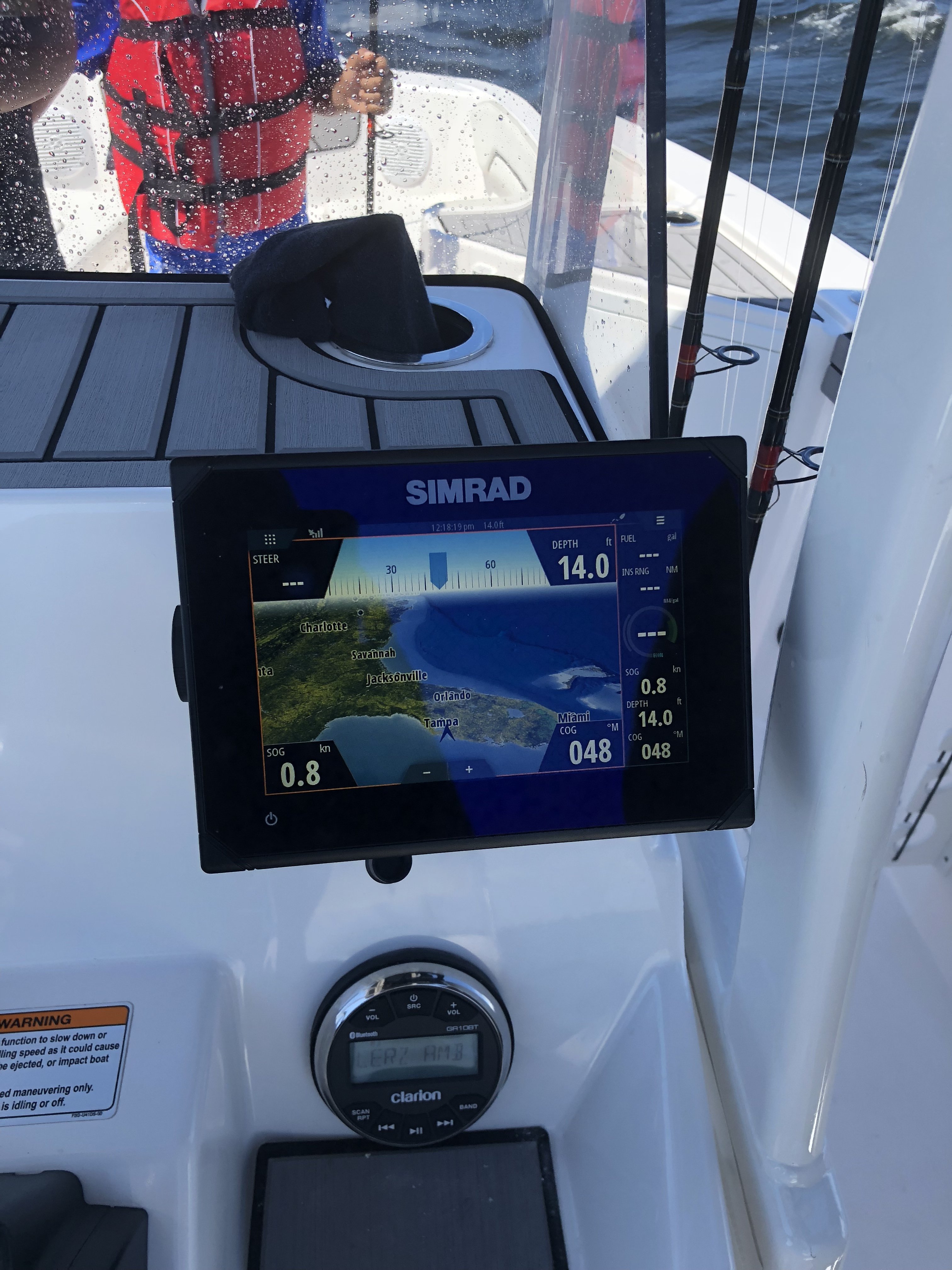

My Yamaha FSH 210 Transducer install, this location and setup works flawlessly at all speeds. Simrad 7 Go XSE with Total Scan Transducer:

( I did splice my Transducer cable to prevent from drilling a quarter size whole in my new boat. I braided all wires one by one back together and used electrical tape to insulate each wire. The system works perfectly.)

2628FC5B-E242-40D7-A9A2-BBE544EADBCB

• Giggajr
• Sep 18, 2018

65DFD5DE-EB31-4BE5-B109-5B854F018BA5

• Giggajr
• Sep 18, 2018

6CFF44BD-E81F-483A-80EF-3DE794F37FA9

• Giggajr
• Sep 18, 2018
• 1

E4C0C976-8F47-46D6-BB82-6443EAB6FF3F

• Giggajr
• Sep 18, 2018
• 1

32C44B23-C810-4C55-979B-F9D889944E7B

• Giggajr
• Sep 18, 2018



[Ron Zimmerman]

Hello. Looks like the ideal location for my Raymarine Dragonfly transducer. Would you, if you have time, take the same pics with a ruler held up to those locations so I can try to match as best I can.



[Liveto99]

I have not put mine on yet, I like that because it does not go below the bottom of the boat. I drive in a lot of shallow stuff. Some pics with a ruler would be great.
