Replacing Yamaha SX230 Scupper Valve

[buckbuck]

No. The way the cooling system works will fill them automatically. When you first start the boat it will sound a bit louder but will quiet down after several minutes.



[arlowe13]

Word of caution, don't twist the new scupper onto the old hose too hard... Ugh.



[12jeep]

@loudog1001, please sign up for the wrench at Holder of the Scupper Wrenches.

Also @maboat found a great deal on stainless steel scuppers at Part# PRE56553 Thread length 3" Overall length 5-1/4" for $36 plus $10 shipping.

What is the size of the stock scupper. The one in your link is out of stock. I found one that is 2 3/16" Thread 4 1/4" OAL.



[Bruce]

What is the size of the stock scupper. The one in your link is out of stock. I found one that is 2 3/16" Thread 4 1/4" OAL.

1 1/2 inch. I believe you would have trouble getting a 2 3/16 to fit even after you drilled a larger hole.



[12jeep]

1 1/2 inch. I believe you would have trouble getting a 2 3/16 to fit even after you drilled a larger hole.

I think you misunderstood 1 1/2” diameter x 2 3/16” thread x 4 1/4” oal



[12jeep]

I think you misunderstood 1 1/2” diameter x 2 3/16” thread x 4 1/4” oal

https://www.amazon.com/dp/B08KGFMLW2?ref_=cm_sw_r_cp_ud_dp_XS84N7JRF4X6QJ2Y7H4V



[dgfreeze]

https://www.amazon.com/dp/B08KGFMLW2?ref_=cm_sw_r_cp_ud_dp_XS84N7JRF4X6QJ2Y7H4V

That’s not a scupper, it appears to just be a through hull fitting. It won’t prevent water ingestion. Have you tried googling the Attwood part number? I believe it’s 66553-3.



[12jeep]

My bad. Didn’t notice that. Yes I saw the Attwood. But then I saw this cheaper one. Should have paid more attention. Thanks.



[agannole93]

Google the part number above and it can be found cheaper than on Amazon right now. Unfortunately the price has gone up just like everything else. I paid only about $50-60 two years ago



[RobbieO]

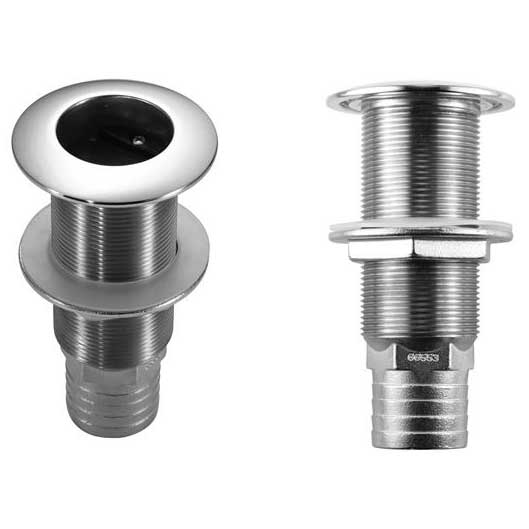

Barbed Stainless Steel Scupper Valve, 1 1/2

Check out our Barbed Stainless Steel Scupper Valve, 1 1/2

www.westmarine.com



[EvenParr]

OK, partial noob here... I see details talking about moving the water box, and other stuff I have no idea what talking about. That said, the floor drain "cap" has broken off, and is no longer attached to the hose. I don't see a flapper piece, so I am assuming that is only on the rear of boat, not allowing water into the system, and not something I need to worry about for this quick fix???

1. Can I simply replace with the stainless steel option I see here, and use the same hose? I will check the rear of the boat next weekend, but all appears to be ok on the back side.
2. Do I need additional parts, or just that SS scupper I see.

Here are a couple pics of the broken one, from inside the cabin.



[agannole93]

OK, partial noob here... I see details talking about moving the water box, and other stuff I have no idea what talking about. That said, the floor drain "cap" has broken off, and is no longer attached to the hose. I don't see a flapper piece, so I am assuming that is only on the rear of boat, not allowing water into the system, and not something I need to worry about for this quick fix???

1. Can I simply replace with the stainless steel option I see here, and use the same hose? I will check the rear of the boat next weekend, but all appears to be ok on the back side.
2. Do I need additional parts, or just that SS scupper I see.

Here are a couple pics of the broken one, from inside the cabin.

This is not your scupper, simply a deck drain fitting. If you purchase the stainless scupper for the deck, it won't work properly. You need to find that part number and replace (and likely clean up/patch the damaged gel coat area)



[EvenParr]

This is not your scupper, simply a deck drain fitting. If you purchase the stainless scupper for the deck, it won't work properly. You need to find that part number and replace (and likely clean up/patch the damaged gel coat area)

Thank you! I was hoping mine was going to be a simple quick fix. Now, I will have to pay attention the scupper next weekend, just to see how it looks. I'd hate to find out the hard way it needs replacing!



[cjnapier]

So word of caution for anyone with an older boat (04 AR230 HO here)… the nut for the scupper is too large in diameter and I didn’t discover until after starting the 4200 and tightening everything down as far as I could. Big mistake. Took me about a hour to realize why it wouldn’t tighten. Took about three hours to get the nut off at that point. I did do a dry fit and everything looked ok but didn’t tighten it down far enough to hit wherever it started rubbing. This was going really well until the mishap. I used the plumber’s wrench from Lowe’s and a set of channel
Lock pliers on the scupper tail. It’s a pain but thankfully was able to get about 95% of the way by hand.

On the upside, I did this as preventative maintenance and sure enough the old scupper was basically split in two by the time I made two turns on the plastic nut. Made removal really easy.

If you are thinking of replacing your drain plug or adding a plug with lighting consider doing it while you are down there. My plug had some pretty old silicone so I replaced it and used 4200.



[RobbieO]

View attachment 199460View attachment 199461
So word of caution for anyone with an older boat (04 AR230 HO here)… the nut for the scupper is too large in diameter and I didn’t discover until after starting the 4200 and tightening everything down as far as I could. Big mistake. Took me about a hour to realize why it wouldn’t tighten. Took about three hours to get the nut off at that point. I did do a dry fit and everything looked ok but didn’t tighten it down far enough to hit wherever it started rubbing. This was going really well until the mishap. I used the plumber’s wrench from Lowe’s and a set of channel
Lock pliers on the scupper tail. It’s a pain but thankfully was able to get about 95% of the way by hand.

On the upside, I did this as preventative maintenance and sure enough the old scupper was basically split in two by the time I made two turns on the plastic nut. Made removal really easy.

If you are thinking of replacing your drain plug or adding a plug with lighting consider doing it while you are down there. My plug had some pretty old silicone so I replaced it and used 4200.

Hopefully you installed the stainless steel version



[cjnapier]

Hopefully you installed the stainless steel version View attachment 199466

Yes. Stainless steel. Had to grind the flange and the circumference of the nut.
