Bimini Mounted Kneeboard Rack

[F.M.]

I couldn't find what I wanted, so I decided to give in and try to fab something.

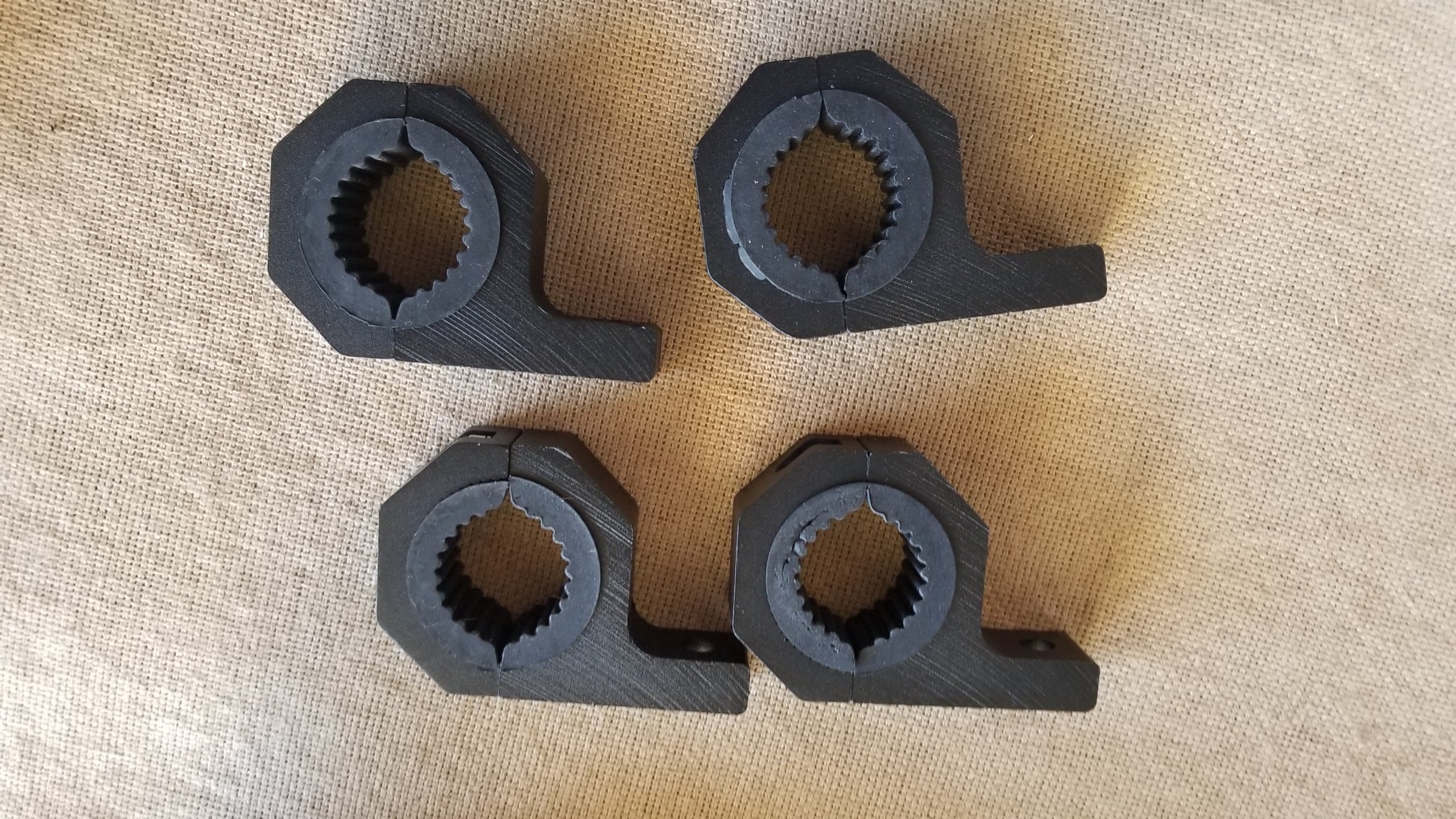

I found these mounts on Amazon.

20180313_145750

• F.M.
• Mar 13, 2018

Bar Mounts

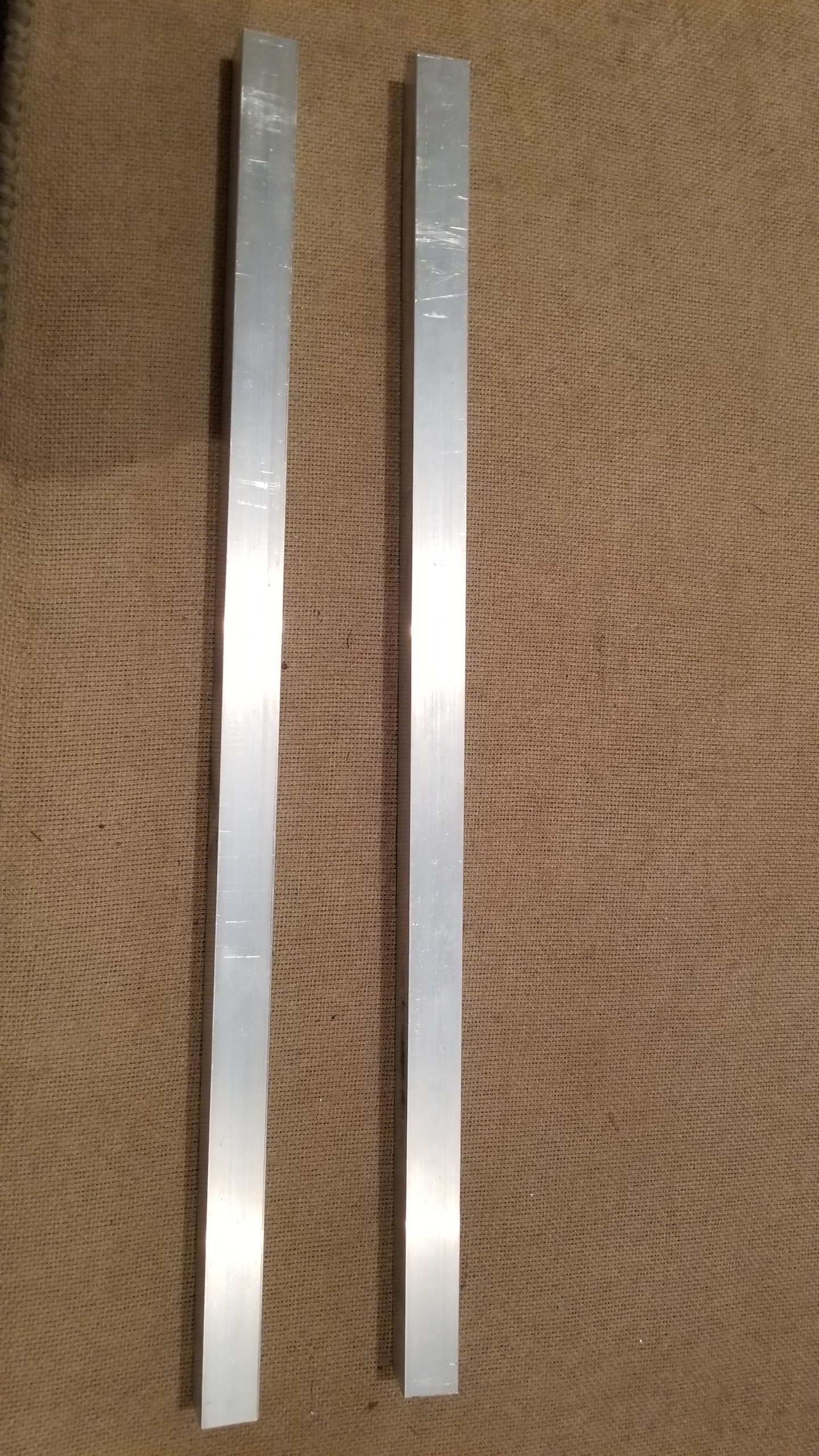

Bought some aluminum tubing from Home Depot.

20180311_182112

• F.M.
• Mar 13, 2018

Aluminum Tubing

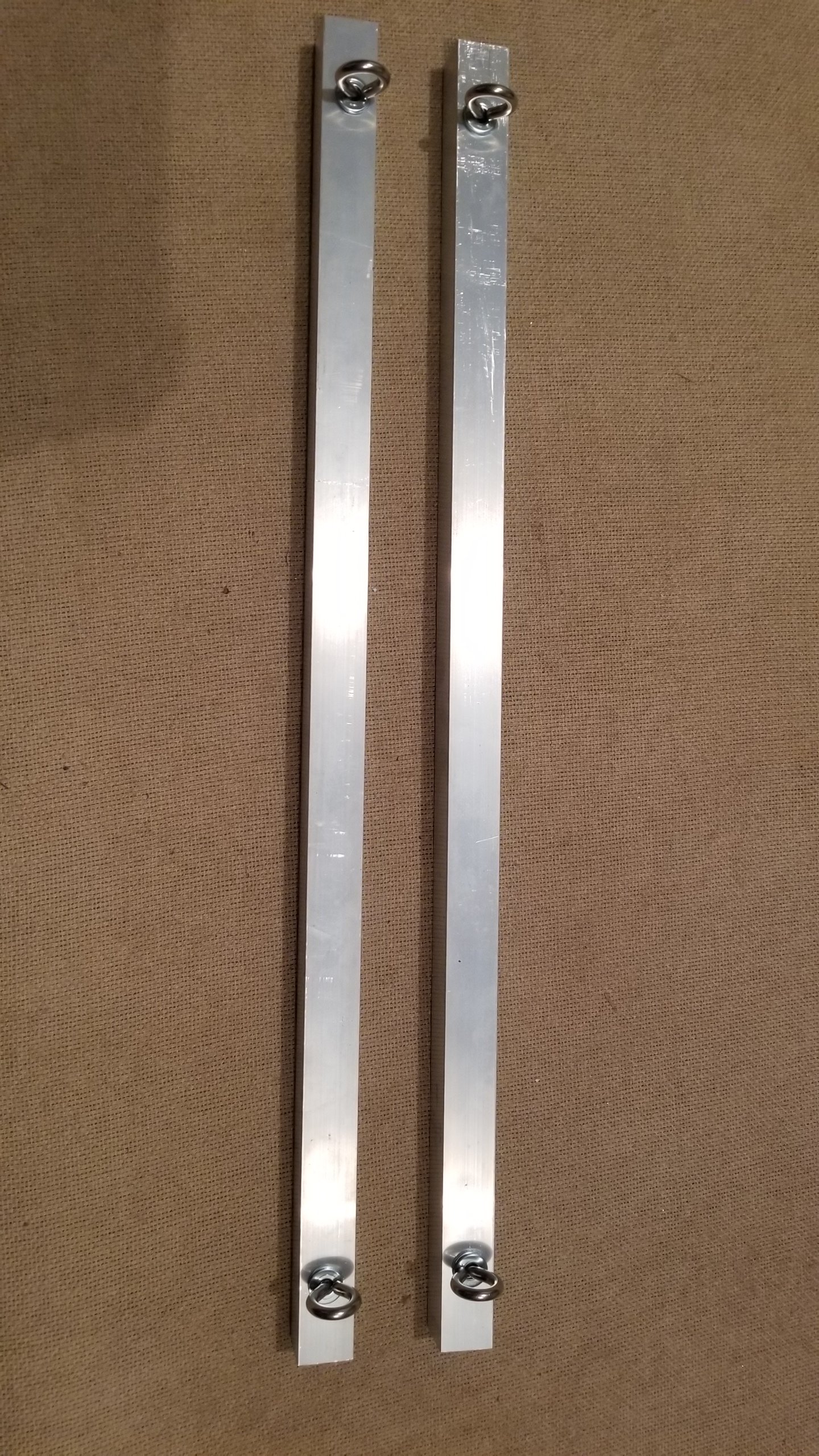

Drilled some holes for eye hooks and the mounts.

20180311_182125

• F.M.
• Mar 13, 2018

Tubing with eye hooks

Got it mocked up.

20180313_153355

• F.M.
• Mar 13, 2018

Pre Paint Fitting

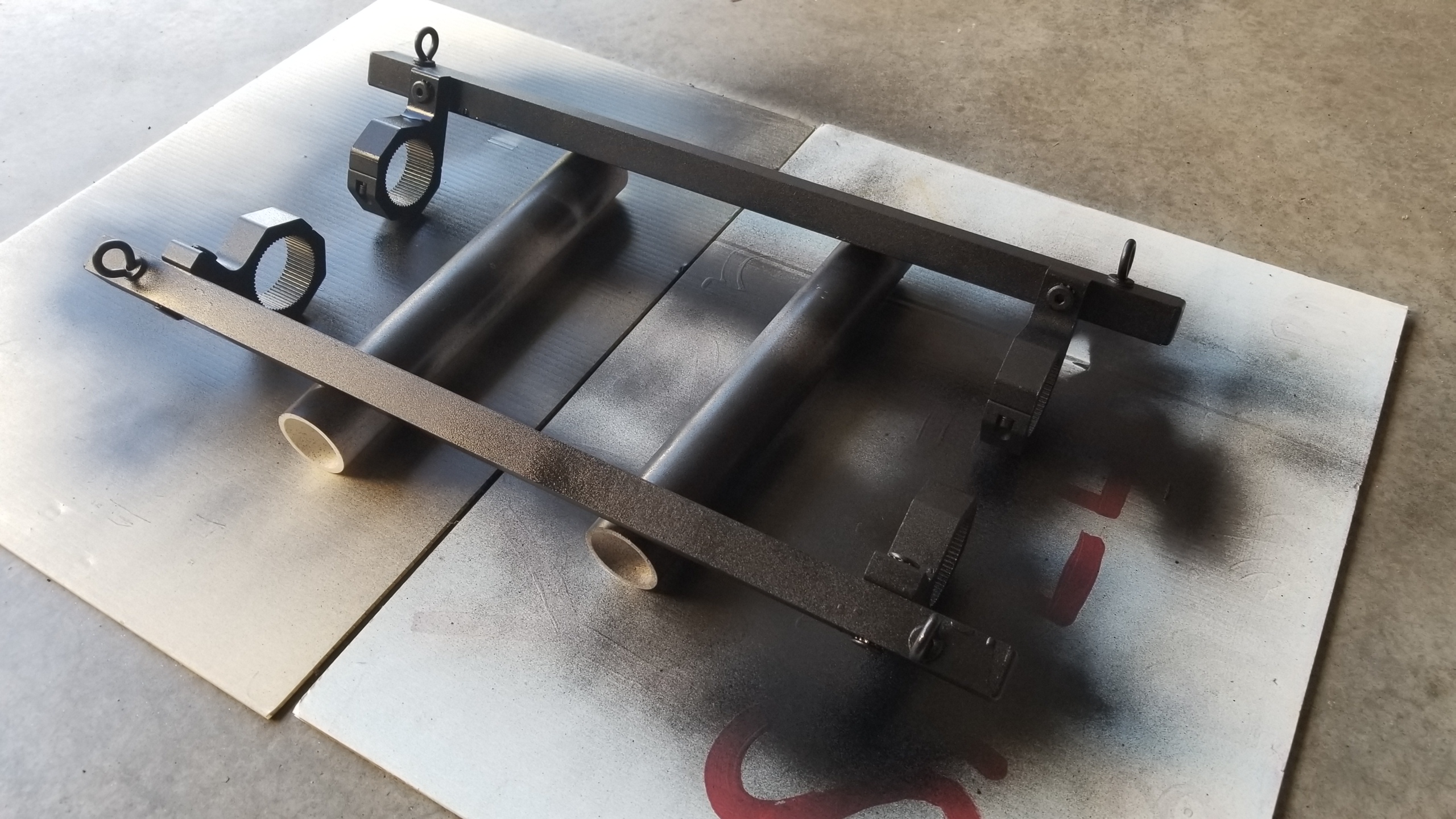

Painted with some truck bed paint so it will last.

20180313_171020

• F.M.
• Mar 13, 2018

Paint

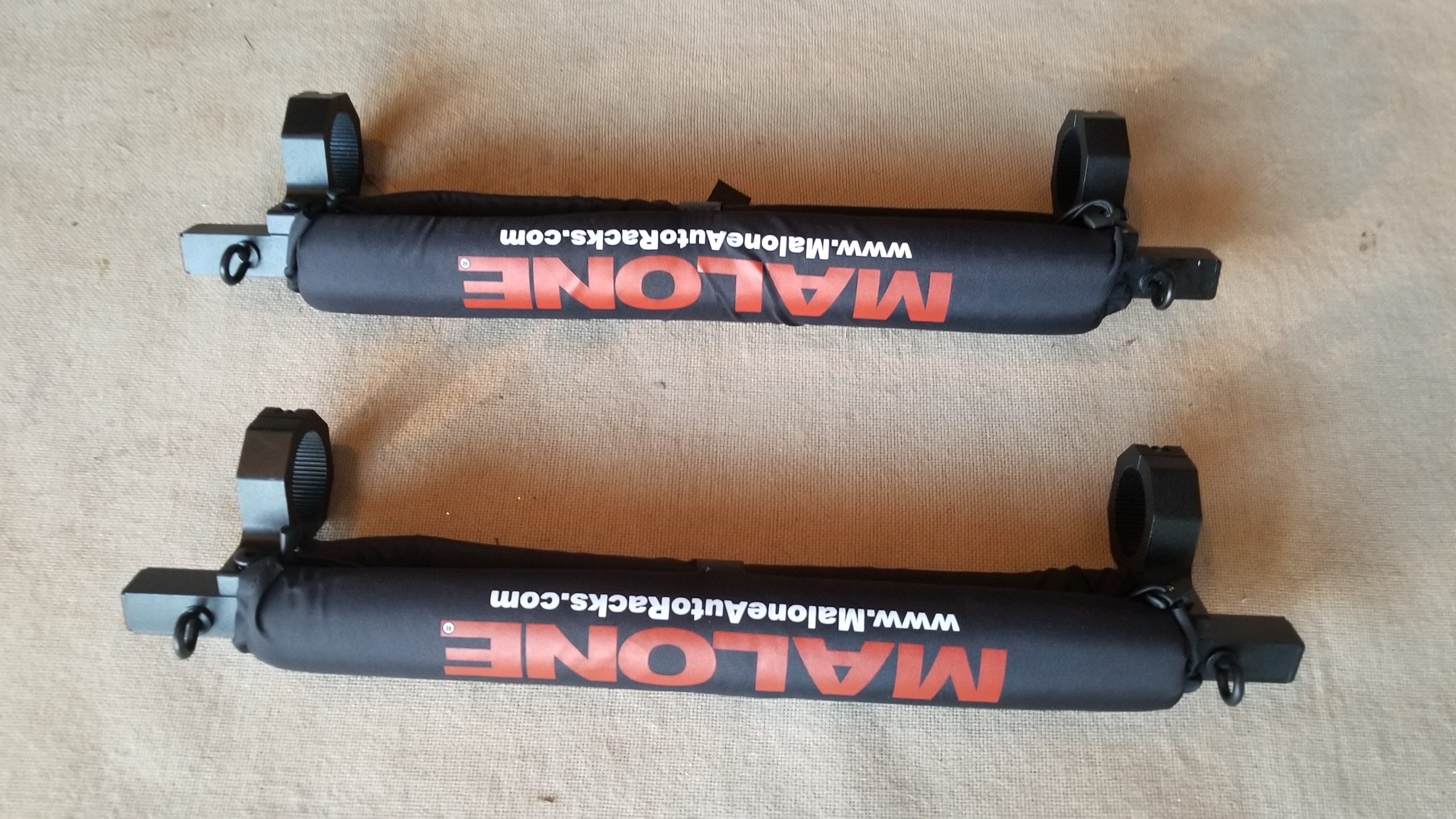

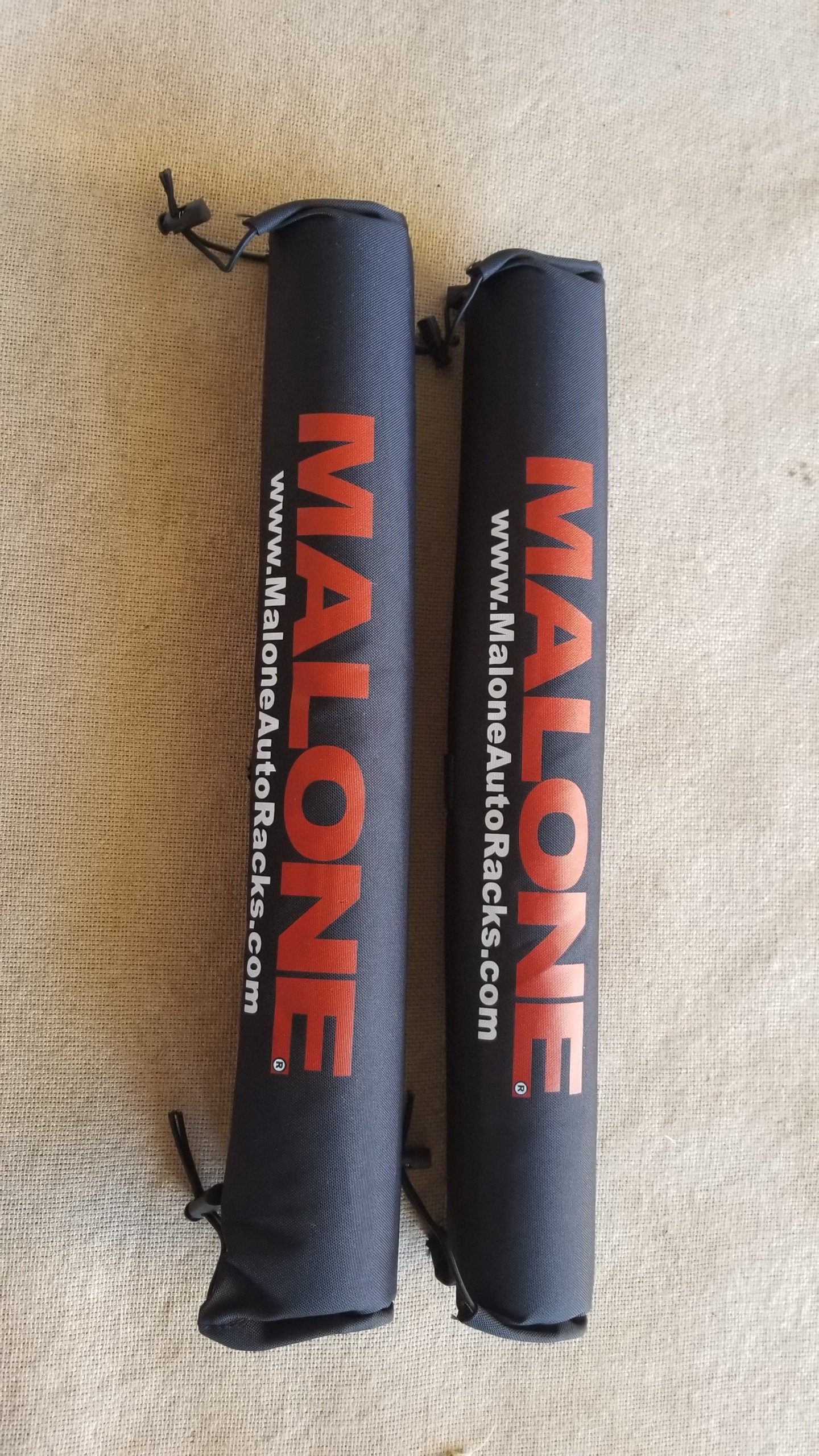

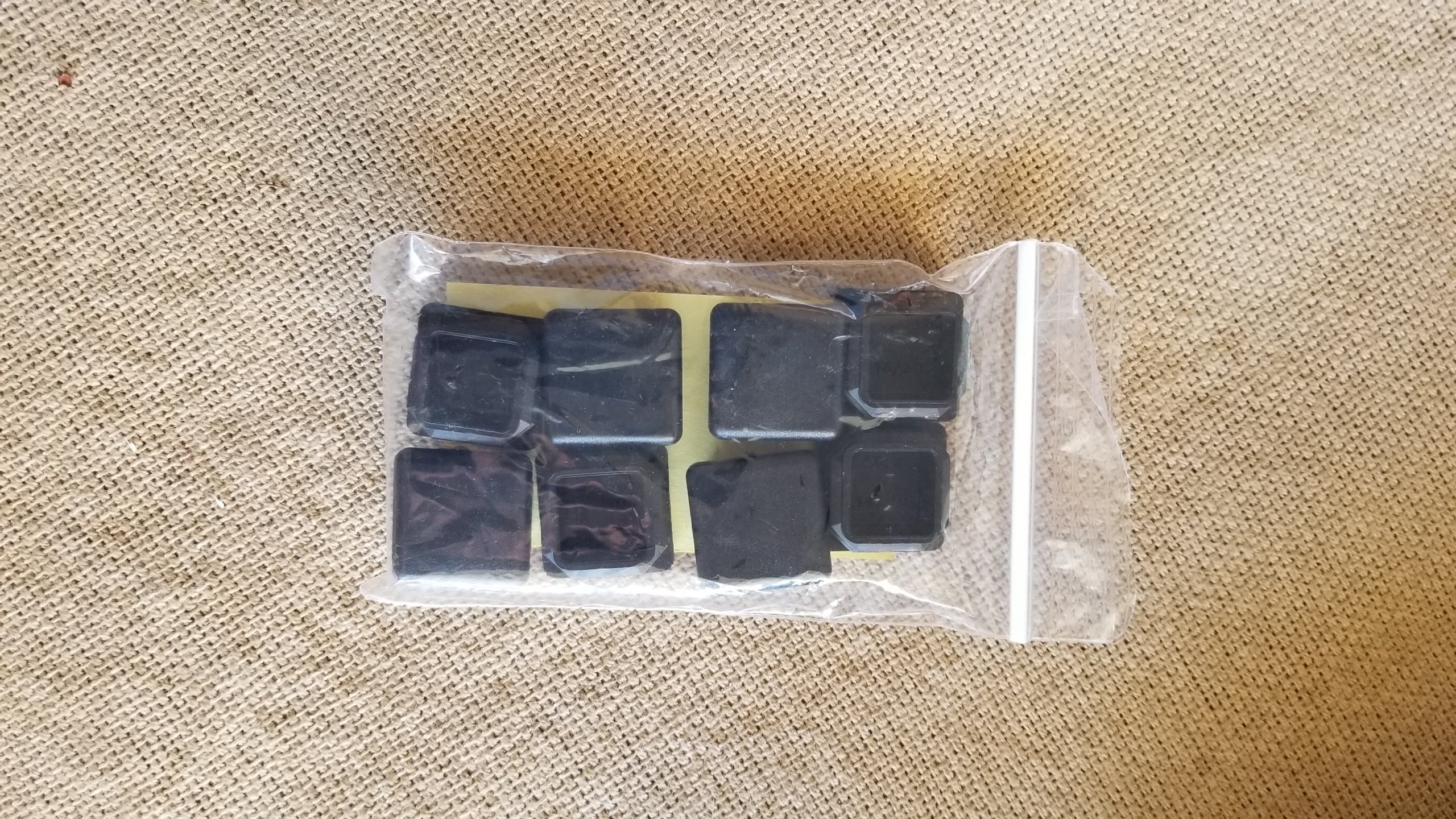

Got some pads and end caps off Amazon.

20180313_145741

• F.M.
• Mar 13, 2018

Pads

20180313_145805

• F.M.
• Mar 13, 2018

Ends Caps

Final assembly.

20180313_183440

• F.M.
• Mar 13, 2018

Finished Product

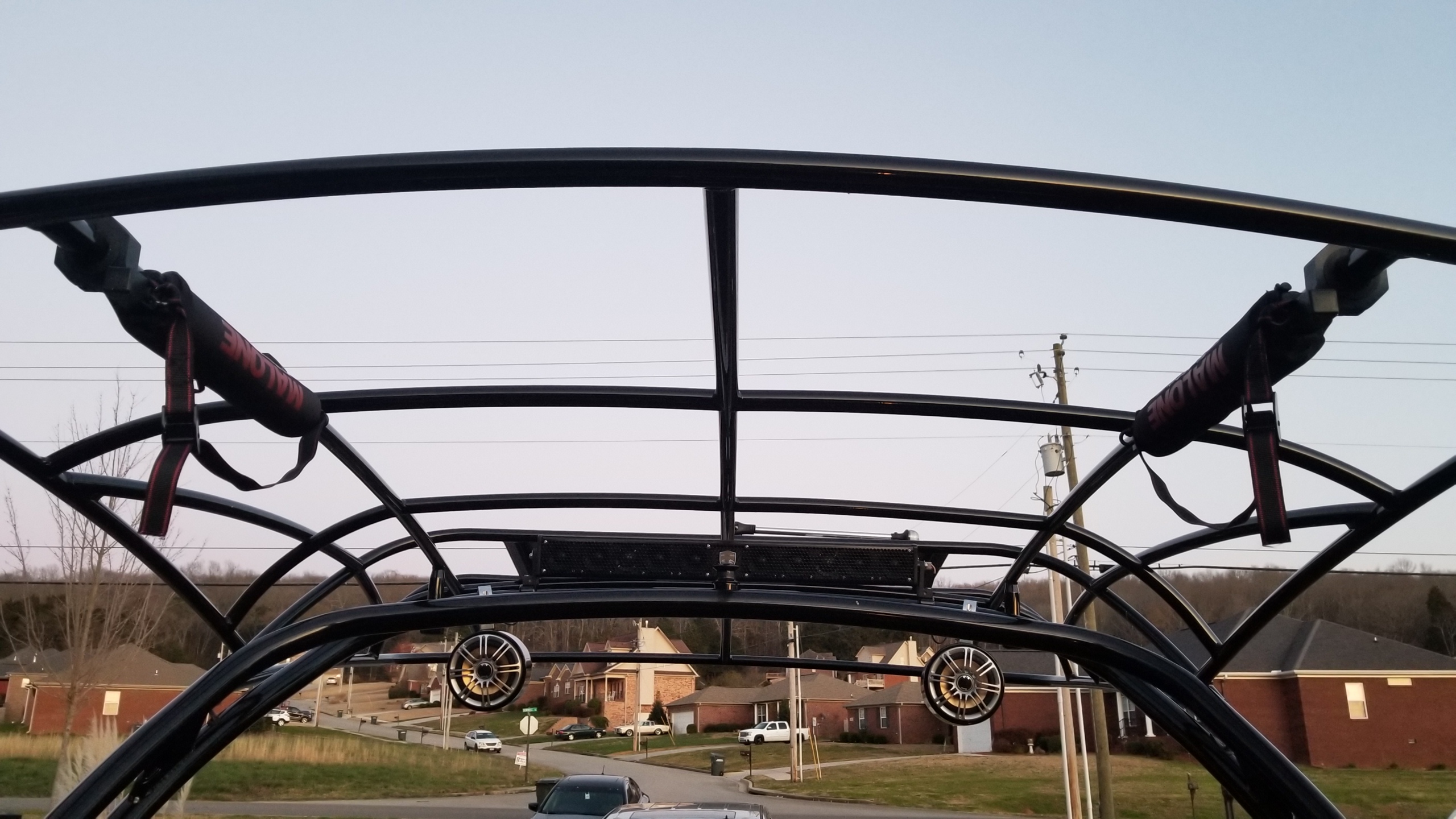

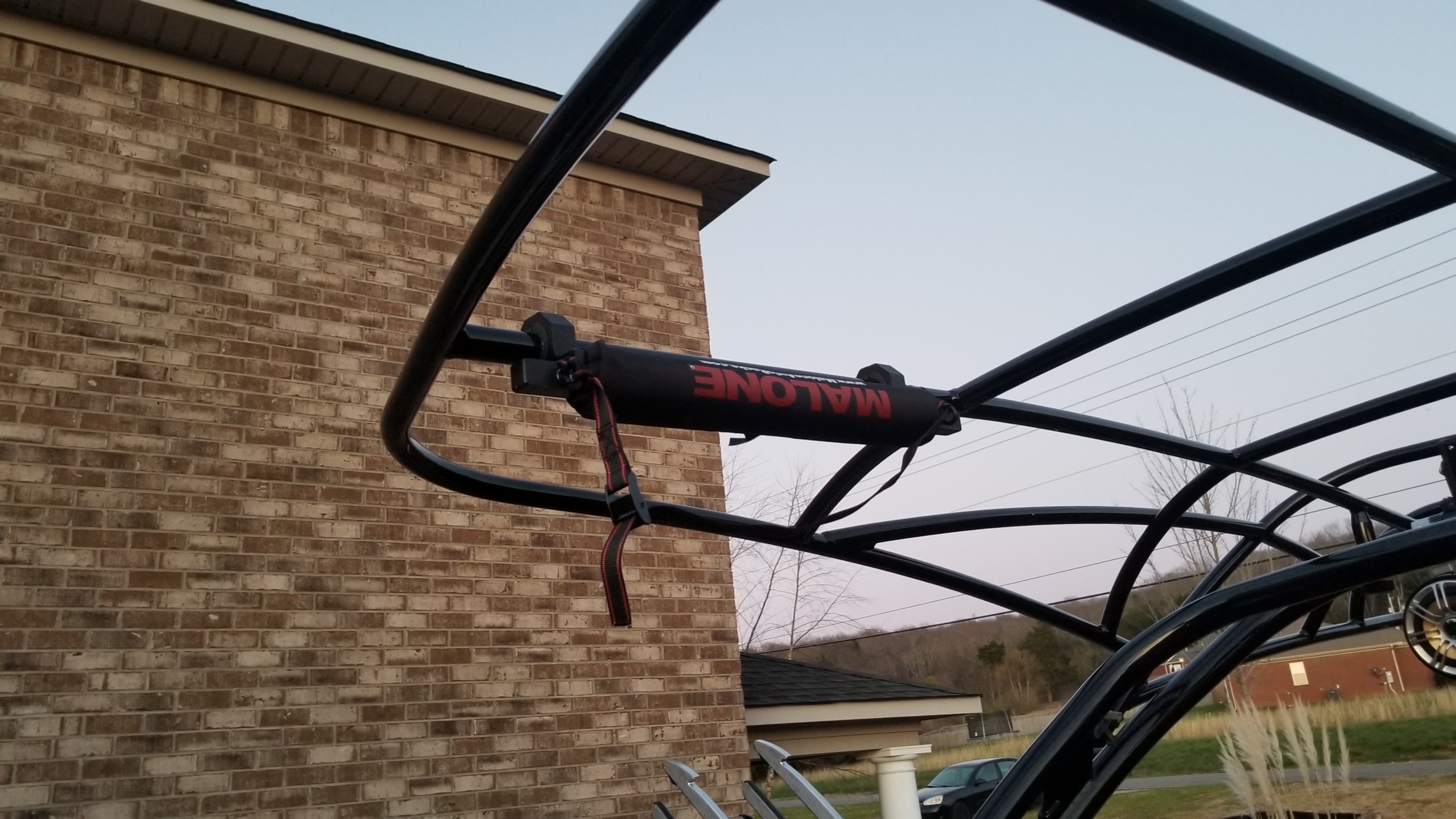

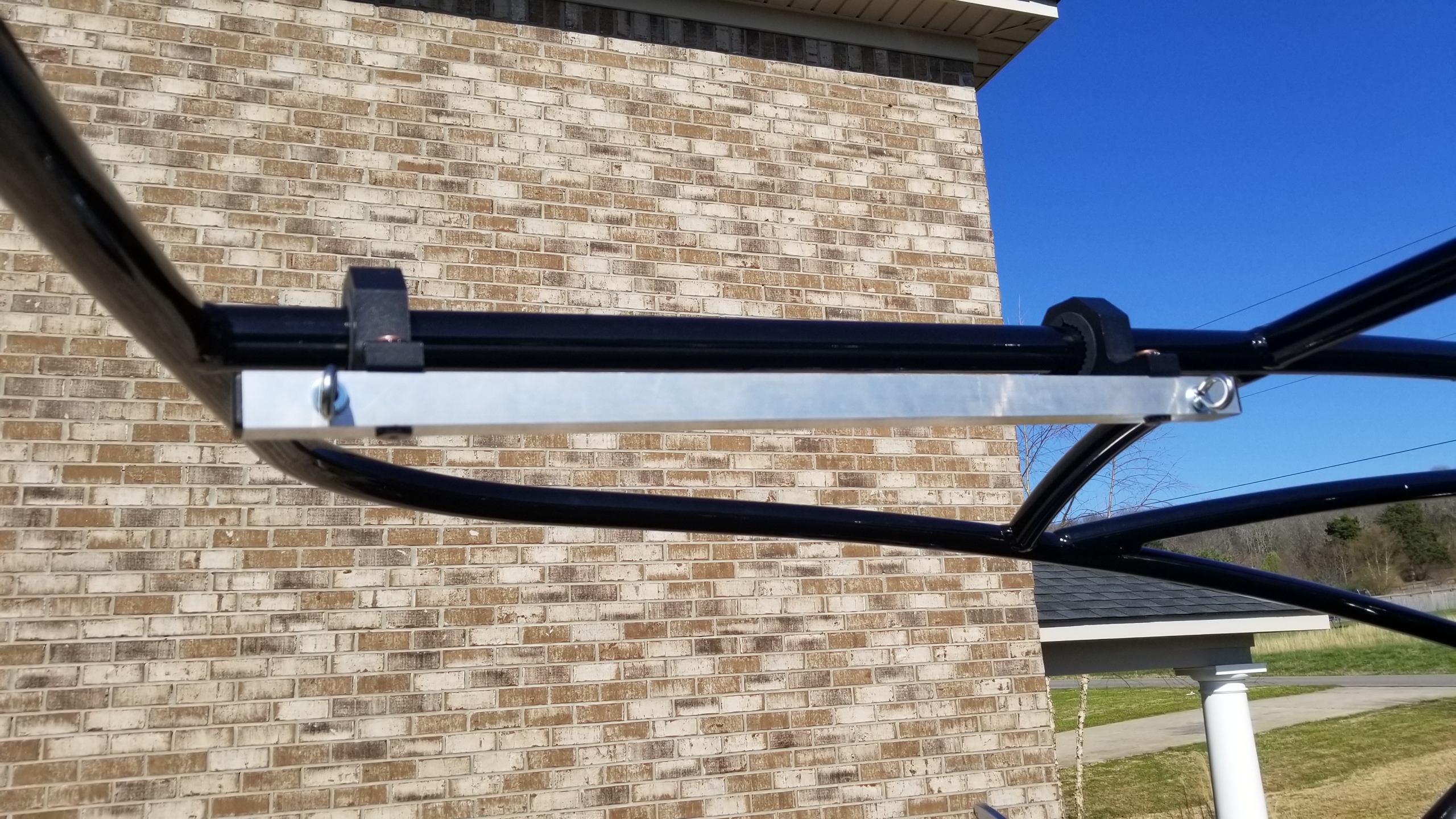

Mounted on the bimini frame.

20180313_190140

• F.M.
• Mar 13, 2018

Final Mounting

20180313_190144

• F.M.
• Mar 13, 2018

Final Mounting

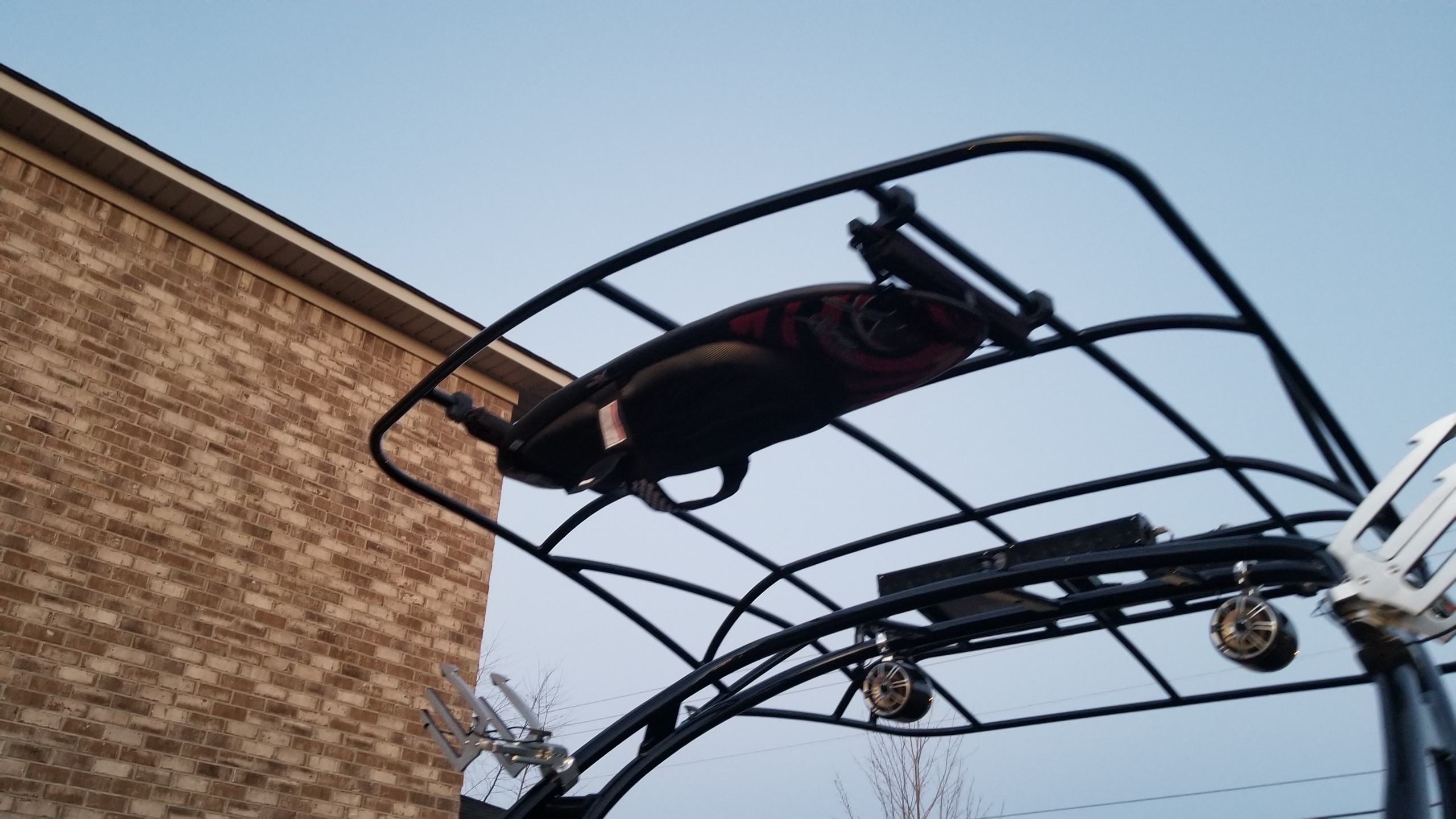

Board actually fits.

20180313_190755

• F.M.
• Mar 13, 2018

Board In

I may have to do some tweaking to the straps. I wish the cross bars of the frame were slightly closer together. I think I might add another strap down the middle connecting the other two to lessen the chance of the board sliding.

But for less than $70 I'm happy with it. And I don't have to purchase a $300 mount for the tower or step over the board in the floor anymore.
